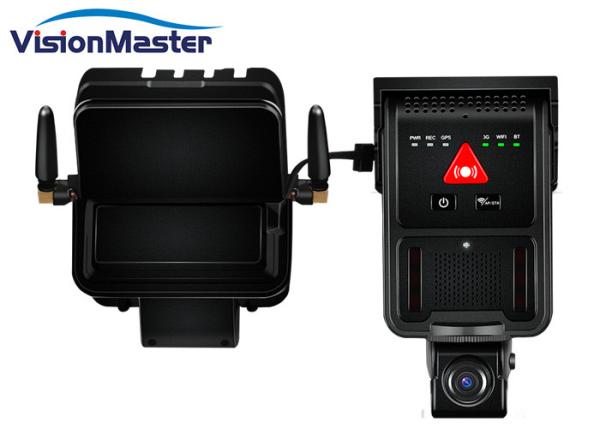

2CH AHD 1080P / 960P HD DVR Dash Cam 256GB SD Card Video Recorder
Product features
H.264 Compression Mode, Support 2CH 1080P AHD High Definition camera input; Exclusive Pre-allocate DVR Special File System Technology,Solving repeatedly
wipe cause file fragmentation, solving SD card file system
collapse, data loss and cannot find SD card and file garbled,
ensure the integrity of the data. 8-36V Adaptive Wide Voltage input, Super Low Power Consumption
Design;SD card/TF Card storage (maximum support 128GB SD card. ) It can be completely resist car Vibration,Dust and others cause
data corruption; Support GPS/BD/G-SENSOR ; High Reliability Aviation Connectors,High Cost Performance with
reliable stability,simple and clear operation menu .
| Item | Parameter |
| OS | Linux |
| Language | Chinese/English/Others (can be customized) |
| Video Compression | H.264 Compression Mode |
| OSD | Overlays information such as date time and vehicle ID |
| GUI | Graphical User Interface | Can connect to external LED screen. Setup system parameters with
the remote control. |
| Video Record System | Video Input | 2 channel,1 channel built-in , 1 channel expansion; 1080P AHD HD /
SD / Mixed Video Input |
| Video Output | 1 composite video output |
| Preview | Support 1/2/4 channels full screen preview |
| Resolution | Support 1080P/720P/D1/CIF, MAX:4channels 1080P |
| Video Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level. |
| Video Standard | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; D1: 800Kbps ~ 3Mbps, multi levels video quality optional; 720P : 1Mbps~4Mbps, multi levels video quality optional; 1080P: multi levels video quality optional; |
| Record Mode | The default setting is auto recording after power on. Timed
recording, alarm trigger recording and manual recording are
supported. |
| Audio | Audio Input | 2CH ,1 channels built-in , 1 channel expansion |
| Audio Output | 1 channel |
| Compression | G.711a compression |
| Alarm Input | 1CH level Alarm Input |
| Alarm Output | 1CH level Signal Output |
| Communication Interface | 1CH RS232 &1 channel RS485 |
| Wireless transfer | Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible
with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE |
| Position | Support Built GPS/BD Module,can make playback analysis of vehicle
routing |
| G-Sensor | Support G-sensor |
| Video Storage | Storage | Max support 1x128GB SD and 1x128GB TF Card |
| Upgrade | Support USB flash disk updating,SD card upgrade , OTA remote
upgrade automatically |
| File Format | H.264 |
| File System | Special Car system File System |
| USB | Support Two USB Port: 2.0 - Front panel supports USB port, support
USB flash disk upgrade to backup; hard disk box USB port, can back
up video data |
| Video Playback | Video Search | Search video by Record Time/Record Type etc |
| Playback | Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time |
| Support x 2,x4,x8,x16. fast forward or fast backward play |
| Safety Management | User/Admin 2 Levels Different Passwords , support screen lock |
| TTS Voice Broadcasting | Support TTS voice broadcasting |
| Voltage & Power Consumption | Power Management | Adaptive wide power input, with overload, undervoltage, short
circuit, reverse connection and other protection functions; Support
the timer switch machine, delay shutdown function. |
| Voltage Input | DC:+8V ~ +36V |
| Voltage Output | 12V @1.2A 4 channels,with IR 12V @0.9A 2 channels,with IR |
| Power-off Protection | UPS Technology,All video information can be saved automatically
when the power is cut off, and make sure that all the files can not
be damaged. |
| Power Consumption | Normal Working ＜10W, Standby state <0.5W |
| Working Environment | Temperature | -40℃ to +70℃ |
| Humidity | 20% to 80% |
| others | Size | 125mm*130mm*150mm |
| Net Weight | 0.5Kg |
Features Details:
Ø Real-time HD Video Recording, 1080P/720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.
Ø HIS Solution, H.264 Compression Mode, Many stream recording,
Maximum support 4CH 2MP High Definition Monitoring/Recording
/Playback (4CH real-time 1080P megapixel high definition input),
support million pixels HD video resolution.
Ø Professional Power Design for all kinds of Vehicles, 8-36V DC; Wide Voltage,
Over-load,Over-voltage,Short Circuit,Reverse Protection,Suitable
for all kinds of vehicles.
Ø Support DC 12V output, it can offer power for cameras,mini
monitor and some peripheral device. Ø Dual SD card Data record storage (maximum support 128GB SD card ) It can be completely resist car Vibration,Dust and others cause
data corruption;
Ø Watchdog Abnormal will trigger Restart Protection Function . It
can better protect Device and
Ø Exclusive Pre-Allocate DVR Special File System Technology, Solving repeatedly wipe cause file fragmentation, and ensure the
integrity of the data.
Ø By accidents power-off protection function.Unique UPS Technology ensures the integrality of record when power
failure occurs,even can for 8-11s.
Ø Flame out Time-lapse Video Recording Function ( Highest support
long delay time 24 hours.)
Ø Auto Recording,Time Recording,Alarming Recording Modes for
Different Request.
Ø Display vehicle traffic status, Vehicle numbers ,Route, Super-low
speed vehicle Information, Convenient management.
Ø Support GPS and G-sensor Modules Extension. 3G/4G SIM CARD Module and WIFI Module, Wireless AP Module.
Ø 3channel-RS232 and 2channel-RS485.
Ø Support 3.7V/600mAh Build-in Backup Battery (Update to 1200mAh Optional).
Ø Support Video&Audio monitoring, 2-way Intercom, PTZ control,
manually Alarm, Over-speed, Geo Fence etc through remote control
platform.
Ø 1 channel I/O alarm inputs (Doors, lights, steering, braking, reversing and all types can be
configured), Can support kinds of response linkages.
Ø Fluent system interface is intuitive and perfect.
Ø Gorgeous powerful client program, providing real-time monitoring,
listening intercom, playback, video, high-definition screenshots
and other functions;
Ø Support SD card Remote Software Upgrade/OTA remote upgrade automatically, partition backup technology upgrade don't crash.
Ø Support mobile phone remote monitoring, and 3G call function
Ø Support TTS Voice Function
Ø Bulk Functions can be customized according to Customers’ requirement
Ø Work Temperature: -30°to 70°(-20 ° C to + 70 ° C with printer and battery)
