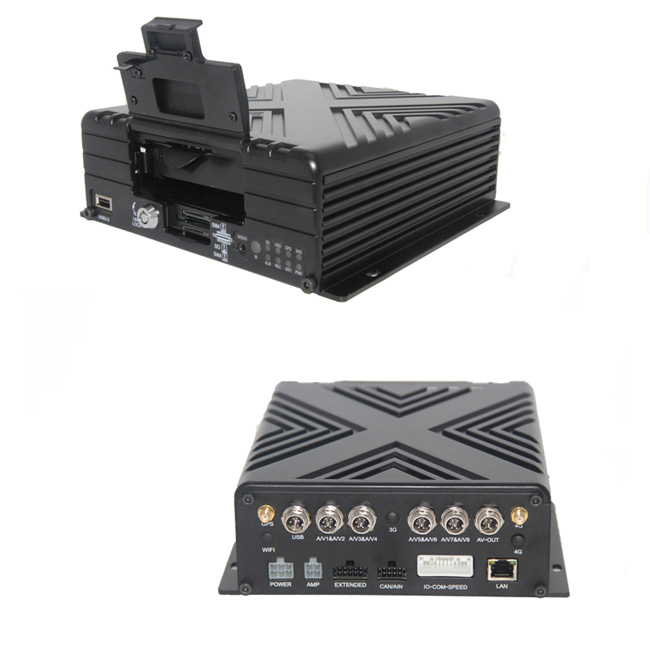

8 Channel AHD Hdd Vehicle Mobile DVR For Car 12 Months Warrantyem
VM-7008-1080P
Series | 8 CH HDD MDVR(1080P AHD, 8+1)
★ 8 x 1080P AHD + 1 x 1080P IPC;
★ G-Sensor included; GPS, 3G / 4G, internal Wi-Fi(5.8Ghz )
optional;
★ Supports 1*SD card(max 512G) + 2 * 2.5" HDD(max 4TB/disk);
★ Supports 2 * SIM cards;
★ Compression Format: H.265
★ Facial Recognition feature supported(optional); |
| Video & Audio Inputs | 4 Channels AHD + 1 channel IPC |
| Resolution | 4 x 1080P AHD + 1 x 1080P IPC |
| Storage | Supports 1*SD card(max 512G) + 2 * 2.5" HDD(max 4TB/disk); |
| Alarm Inputs | 8 Channels |
| Alarm Outputs | 2 Channels |
| RS485 Interface | ×1 |
| RS232 Interface | ×2 |
| USB2.0 Interface | ×1 |
| Built-in Module | G-Sensor, GPS, 3G/4G, WIFI ( 5.8 Ghz) |
Attention
In order to enable users to use this series of products for a long
time, safely and
satisfactorily, please read the following warnings before
installing and using the products:
1. All installation and maintenance must be performed by
professional technicians
2. The normal working voltage range of the device is DC 8V~36V.
Please note that the power
input should not be connected and the stability of the power input
line. The output cannot be
short-circuited.
3. The device outputs 12V external voltage, which is only used for
camera power supply. It is not
allowed to connect any non-recommended equipment.
4. Connect the ground wire of the correct connection device to the
ground wire of the vehicle to
form a circuit.
5. The equipment should be installed in a dry and ventilated
environment to avoid moisture, rain
and vehicle cleaning and flushing position, keep the equipment away
from heat, dust and strong
magnetic field.
6. Please install the equipment as far as possible on the vehicle
where the vibration is weak,
improve the stability of the equipment and prolong the service
life.
7. Do not stack debris within 20cm around the installation
equipment, and do not have heavy
objects pressed to ensure the heat dissipation environment.
8. The storage devices and modules on the device do not support hot
swap. Do not insert or
remove storage devices or modules while the device is powered on.9. Please perform regular maintenance on the storage device hard
disk or SD card: copy the
video data to the computer and format it to protect and extend the
performance and service life
of the storage device.
10. Do not open or disassemble the equipment without the guidance
of a professional
technician.
The calculation method of the video file size:
1 hour 1 image quality D1 resolution route file size: 3600 *
2048Kbps / 8 / 1024 = 900M
720P=1.32GB/Hour/Channel
1080P=2.25GB/Hour/Channel
Flow calculation:Bit rate X3600/8/1024=MB
384X3600/8/1024=168.75MB all the way one hour
