| Function | VM-3004-HYBRID |
| System | Language | English / Chinese |
| Operation Interface | Graphical User Interface (OSD menu) |
| Password Security | 2 Levels: Administrator & User |
| Video | Video Input | Supports 4 channels 1080P AHD camera Video input
Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input
Supports 4 channels 1080P/720P IP camera Video input
Supports 4-CH 1080P/720P IPC + 4-CH 720P AHD/960H/D1/CIF Video
input |
| Video Output | 1 each HDMI (max. 1080P), 2 CVBS (Analog); 1 each 3.5mm Jack on
Front Panel and one connection on the 24 pin I/O port |
| Video Display | Single picture, 1~8 pictures |
| Signal System | PAL / NTSC ( PAL@200 frame 1080P/sec; NTSC@240 frame 1080P/sec ) |
| Image Compression | H.264 Main profile |
| Audio | Audio Input | 4 Channels |
| Audio Output | 2 Channels (Front Panel 3.5mm Jack, 1 in the 24pin connector) |
| Record Format | Synchronized A/V recording |
| Recording & Storage | Image Resolution | CIF / HD1 / D1 / 960H / 720P /1080Poptions |
| Video Coding | ISO14496-10 Industry Standard |
| Video Bit Rate | CIF: 1536Kbps ~ 128Kbps, |
| HD1/D1: 2048Kbps ~ 400Kbps, |
| 960H: 2048Kbps ~ 400Kbps, |
| 720P:4096Kbps ~ 400Kbps |
| 1080P:4096Kbps ~ 400Kbps |
| Select from 8 Levels of Video Image Quality ranging from 1(Highest)
to 8(Lowest) |
| Audio Bit Rate | 40Kbps |

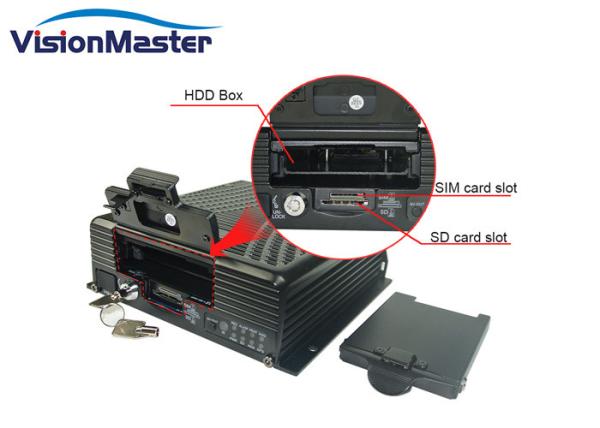

| Storage | Up to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G/WIFI model
option) |
| Alarm | Alarm Input | 8 Channels, Select Trigger for either less than 1VDC or greater
than 5VDC |
| Alarm Output | 1 Channel, 12V output |
| Communication Ports | RS485 | 1 Port for PTZ control or Data Device usage |
| RS232 | 2 Port for communication or data usage |
| RJ45 Network | 4 Ports of RJ45, For connection to an IP camera with maximum of
1080P |
| USB | 2 Ports of USB 2.0, the front is used to export record file. The
rear panel is used to mirror |
| Wireless Communication* | 3G* | 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal
module |
| 4G* | 4G (TDD-LTE / FDD-LTE) optional module to match local cellular
carrier |
| Wi-Fi* | Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional |
| GPS* | Int'l Standard GPS* | Internal GPS module. Real-time geographic coordinates, speed
information |
| G-Sensor | Internal G-Sensor | Supports 3 Axis Motion Detection with user set ranges, for X, Y and
Z coordinates |
| Software | PC Playback | A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for
playback on PC. Limited playback is also available on MDVR |
| IVMS | Wireless (require Wi-Fi or cellular Option) real-time A/V
monitoring, GPS, alarms, etc. |
| Software Upgrade | Local or Remotely | Upgrade through the front USB2.0 or remotely via IVMS platform |
| Voltage Input | +8～+36V | 8～36VDC Please check operational voltage of vehicle prior to the
installation of the MDVR and its accessories to prevent possible
damage |
| Voltage Output | 12V | 12V(+/-0.2V),Max 3A |
| ACC Detection | ≤4V | Power Off |
| ≥6V | Power On |
| Video Input Resistance | 75Ω | 75Ω |
| Video Output Voltage | 2Vp-p | 2VP-P CVBS output analog signal, screen input requires 75Ω
resistance |
| I / O port | <1V | Low voltage trigger |
| >5V | High voltage trigger |
| Operation Temperature | -40℃～80℃ | Install in well ventilated area, protected from moisture, heat,
dust and vibration |
| Dimensions | 192x184x61mm | Including Security Cover 248x184x61mm |
1. Installation Environment
To extend the service life, please try to install the device in a
place where vibration is weak;
To ensure normal heat dissipation, do not install the device in a
poorly-ventilated area (such as trunk), and also keep about 15 cm away from other objects on the same level;
The device shall be horizontally installed and protected against
water, humidity and lightning; in addition,keep the vehicle still during installation to prevent damage to the
device due to falling off;
To ensure safe operation, keep the device, camera, cables and other
accessories out of reach of passengers and driver.
2. Avoid Electric Shock and Fire
8V-36V DC power supply is used for this device. Please note the
positive and negative terminals during connection to prevent short
circuit;
Please power the device off before connecting any peripheral ;
Do not touch the power supply and the device with wet hands;
Do not spray liquid on the device to prevent internal short circuit
or fire;
Do not place any other device directly on top of the camera;
Do not disassemble the housing without authorization to avoid
damage or electric shock;
3. Transport and Handling
To prevent incidental damage to the device during transport. Handle
the device with due care.
The original packaging materials and carton are preferred;
Power the device off before handling or part replacement to prevent
any damage;
