2 * 512G SD Card Vehicle Mobile DVR 4G 4CH AHD 1080P For Bus Taxi
Visionmaster Products' Advantages :
1. Power failure protection.
2. Wide voltage (6-48V, Seldom other companies can achieve this
function, other companies only can ac
hieve 8-36V).
3. OTA function support. (Upgrating DVR software automatically,
better after-sales service for you.
4. A SMS can get DVR situation feedback from DVR
5. Industrial level design. (More professional and better quality.)
6. Modular design. (To prevent a module error while affecting the
entire product.)
7. Encrypt video format. (To prevent data loss)
8. Current and voltage over protection.
9. Wide working temperature. (-25°C- +75°C).
10. Data redundancy technology. (To prevent data loss)
11. Excellent vibration protection.
Introduction
Dual core system design architecture with powerful edge computing
capabilities for superior face recognition, ADAS, and driving
behavior analysis
A new generation of H.265 image compression engine, with
HD 1080P image processing capabilities, perfect image experience Excellent industrial design and powerful data interface to adapt to
rich application scenarios
Dedicated vehicle complex power environment solution, showing
stable and reliable data output
| Brand | Multifunctional SD/SSD Mobile DVR |
| Model | VM-6104-1080P |
AI Functions | Support Driver Face ID &Comparison, ADAS,DMS(Option) |

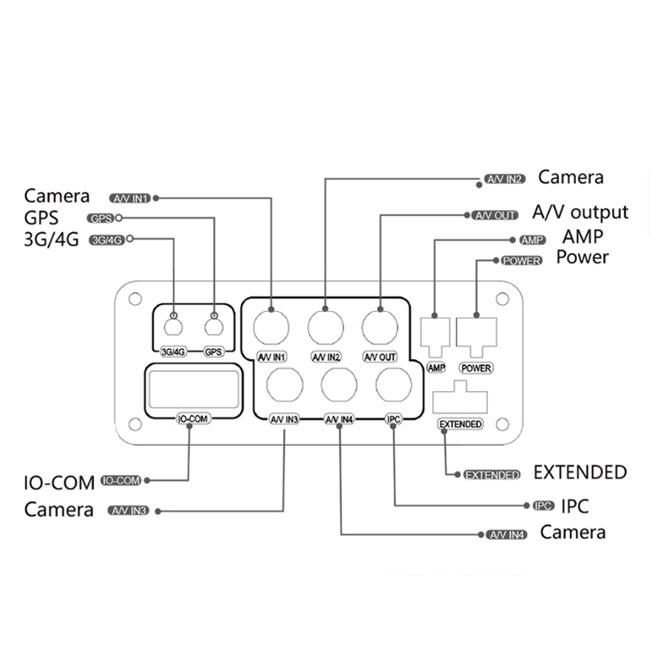

Interface |
USB*2(USB Tools & Fireproof black box) |
Video | 4-8CH AHD1080P/720P 1CH ADAS,1CH DSM 1CH IPC Video Input(Option) CVBS*1 output,HDMI*1 output | Support 100M/1000M Net Port IPC 1080P Input |
| IO_IN*8, IO_OUT*2,RS485*1,RS232*2, CAN*1 |
| 12V Output,Max: 1A |
| Video Compression | Compatible H.265/H.264 Video Compression | Voltage | DC8V—36V Input |
Audio | 4-8ch Input,2ch Output,G.711A Audio Compression |
Power |
< 6W (No Peripheral) |
Wireless Communication | 4G:TD-LTE/FDD-LTE 3G:EVDO/WCDMA/TD-SCDMA WIFI/BT (optional) |
Operation Environment |
-25℃—＋75℃ |
Storage | 2*SD(512GB Max) , Support SSD(Option), External USB interface for data backup |
Humidity |
10％—95％ |
| Satellite Position | Beidou/GPS/GLONASS(Option) | Protection Level | IP43 |
| Control Mode | IR Remote Control,Tools APP,Platform | Dimension | 138 x 170x 66mm(L x W x H) |
Attention
In order to enable users to use this series of products for a long
time, safely
and satisfactorily, please read the following warnings before
installing and
using the products:
1. All installation and maintenance must be performed by professional technicians
2. The normal working voltage range of the device is DC 8V~36V.
Please note that the power input should not be connected and the stability of
the power input line. The output cannot be short-circuited.
3. The device outputs 12V external voltage, which is only used for
camera power
supply. It is not allowed to connect any non-recommended equipment.
4. Connect the ground wire of the correct connection device to the
ground wire of the vehicle to form a circuit.
5. The equipment should be installed in a dry and ventilated
environment to avoid moisture, rain and vehicle cleaning and flushing position,
keep the equipment away from heat, dust and strong magnetic field.
6. Please install the equipment as far as possible on the vehicle
where the vibration is weak, improve the stability of the equipment and
prolong the service life.
7. Do not stack debris within 20cm around the installation
equipment, and do not have heavy objects pressed to ensure the heat dissipation
environment.
8. The storage devices and modules on the device do not support hot
swap. Do not insert or remove storage devices or modules while the device is
powered on.
9. Please perform regular maintenance on the storage device hard
disk or SD card: copy the video data to the computer and format it to protect
and extend performance and service life of the storage device.
10. Do not open or disassemble the equipment without the guidance
of a professional technician.
