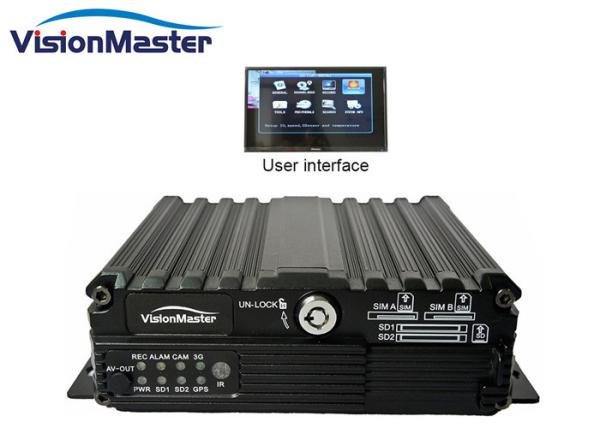

4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration

Ask Lasest Price
Brand Name :	VisionMaster
Model Number :	VM-1404-HD
Price :	Negotiable
Certification :	CE,FCC
Payment Terms :	T/T, Western Union,PayPal
Supply Ability :	2000 sets / month
Delivery Time :	3-5 work days for samples,15-30 work days for large orders

Add to Cart

Product Details
Company Profile

4ch Digital Vehicle Mobile DVR With GPS SD Card Storage Anti Vibration

Function		VM-1404-HD
System	Language	English / Chinese
	Operation Interface	Graphical User Interface (OSD menu)
	Password Security	2 Levels: Administrator or User
Video	Video Input	Supports 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input Supports 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input will require high speed SD card ( > 80Mb/S, Class 10 or higher)
	Video Output	2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
	Video Display	Single picture, 1~5 pictures
	Signal System	PAL / NTSC ( PAL@100 frame 720P/sec; NTSC@120 frame 720P/sec )
	Image Compression	H.264 Main profile
Audio	Audio Input	4 Channels
	Audio Output	2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port )
	Recording Format	Synchronized A/V recording
Recording & Storage	Image Resolution	CIF / HD1 / D1 / 960H / 720P/1080P optional
	Video Coding	ISO14496-10 Industry Standard
	Video Bit Rate	CIF: 1536Kbps ~ 128Kbps,
		HD1/D1: 2048Kbps ~ 400Kbps,
		960H: 2048Kbps ~ 400Kbps,
		720P:4096Kbps ~ 400Kbps
		1080P:4096Kbps ~ 400Kbps
		Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest)
	Audio Bit Rate	40Kbps
	Storage	2 SD Card Slots, Up to 128GB each, Class 10 or higher
Alarm	Alarm Input	8 Channels, Select trigger for either less than 1VDC or greater than 5VDC
Alarm	Alarm Output	1 Channel, 12V output
Communication Ports	RS485	1 Port for PTZ control or Data Device usage
	RS232	2 Port for communication or data usage
	RJ45 Network	1 Port of RJ45. For connection to an IP camera with maximun of 1080P
Wireless Communication*	3G*	3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional internal module
	4G*	4G(TDD-LTE / FDD-LTE) optional internal module to match local cellular carrier
	Wi-Fi*	Internal Wi-Fi 802.11b/g/n (2.4 / 5.8 Ghz) option
GPS*	Int'l Standard GPS*	Internal GPS module. Real-time geographic coordinates, speed information

Optional Features:

- GPS function optional;

- 5.8GHz external WIFI module optional;

- 3G function optional;

- 4G function optional;

- Aviation connector / 4pin square Molex Connector optional(for Audio/video input).

Packaging & Shipping

Our Services

- Factory direct professional and high quality products for fleet management;

- Intelligent vehicle monitoring solution provider;

- OEM/ODM projects are welcome with technology support;

- Best before and after-sales services.

FAQ

Q: When 3G has neither report nor video, what should be done first?

A: Press INFO key to enter the system information page. Check whether the SIM card exists and view the signal strength as well as dial-up status, whether the antenna is in good contact, and then check the SIM to see whether it is out of traffic, the most basic judgment is to replace the SIM card, if the dial up failed with signal, then check whether the settings of center number and the port are correct. Moreover check whether the device number of the product is already occupied.

Q: The device is online, but why can I not see the video image?

A: Please set lower sub-stream to transmit image, the blocked or slow transmission speed situation may occur when the sub-stream frame rate is set very high and be affected by network uploading limit; poor network signal or intermittent will seriously affect the video transmission.
