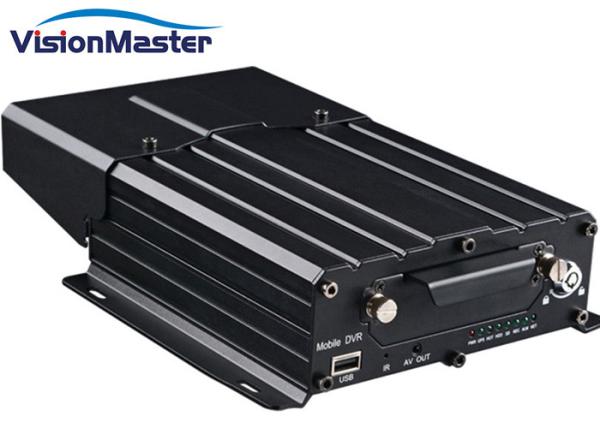

AHD Technology 1080P Mobile DVR With GPS / Wifi / 3G L200 * W187 * H62

**AHD Technology 1080P Mobile DVR With GPS / Wifi / 3G L200 * W187 * H62**

Specification

Item				Parameter
OS				Linux
Language				English/Chinese/Customized
Video Compression				H.264 Compression
OSD				Overlays information such as date time and vehicle ID
GUI	Graphical User Interface			Setup system parameters with the remote control.
Video Record System	Video Input			4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω
	Video Onput			1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view
	Preview			Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview
	Resolution			720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
	Image Quality			1-4 levels, 1 is the highest level.
	Video Standard			PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional
	Record Mode			The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio	Audio Input			4CH Aviation Plug Input
	Audio Output			2CH,headphone connect at front panel, BNC Connect on Back panel
	Compression			G.726 compression, 8KB/s speed
Alarm Input				7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output				2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface				3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
				1CH 485 Interface,Connect PTZ Camera
Wireless Transmission				Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE； Built in 4G module optional, TDD-LTE, FDD-LTE
GPS Position				Support Built GPS/BD Module
		HDD		Max 2.5” 2TB HDD
Storage		SD Card		Max 128GB SD Card Mirror Recording Keep Data Safety
		Update		Support USB Updating, SD Card Updating,OTA Remote Updating
		File Format		H.264
		File System		Special FAT32 File System
		USB		USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay		Video Search		Search By Record Time/Record Type etc
		Playback		Max support 4CH Replay /Stop/Fast/Slow at same time
				Support forward and backward play at the speed of: x 2,x4,x8,x16.
Security				User/Admin 2 Level Different Password
Optional Functions		Voice Call		Support voice call each other
		TTS Voice Broadcast		Support TTS voice broadcast function.
		Serial Expand		Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device
Voltage & Power			Power Management		Wide Voltage.Support Timed/Delay off
			Input Voltage		DC:+6V - +36V
			Output Voltage		+12V@1.5A,+5V@1.5A
			Power		Working ＜5W
Working Environment			Temperature		-20℃ - +70℃
			Humidity		20% - 80%
Others			Size		200 (D)* 187(W)* 62(H) mm
			Weight		1.90 Kg

1—HDD Lock, it’s used for unload hard disk. Device will power off automatically if power on when HDD lock is open;

2—HDD Fixed Screw . Please manually tighten screw after installing hard disk drive, to prevent HDD slip out ;
3— Status Indicator LED,Details as below :

PWR — Power Indicator LED. LED light means system has powered on.

GPS — GPS/BD Status indicator light. LED ON—Positioning success,
LED FLASH—In positioning ,LED OFF—No GPS Module.

HOT —Hard disk heating LED. LED ON—HDD is heating,
LED OFF—HDD doesn’t open heating.

SD — SD card Indicator LED. LED ON—Card is recording,LED FLASH—Card exists but not recording,LED OFF—Card does not exist.

HDD — HDD card Indicator LED.LED ON—HDD is recording,LED FLASH—HDD exists but not recording,LED OFF—HDD does not exist.

REC — Video Recording Indicator LED.LED ON—In the recording；

ALM — Alarm Indicator LED. LED ON — In the alarm ；

NET — Network Indicator LED. It changes based on dial-up connection status, details as below:
LED OFF—No communication module,
LED INTERMITTENT FLASH—SIM CARD does not exist ,
LED QUICK FLASH (1:1) —Device is dialing,
LED SLOW FLASH (3:1)—server connection is not successful,
LED ON - server connection is successful.

4—SIM Card and SD Card Slot; ( When installation gap towards inside, metal touch spot face down )
5—Front audio and video output interface
