Water Resistant Cctv Camera On Mobile , Side Mount Vehicle Monitoring Camera

    Buy cheap Water Resistant Cctv Camera On Mobile , Side Mount Vehicle Monitoring Camera from wholesalers

    Buy cheap Water Resistant Cctv Camera On Mobile , Side Mount Vehicle Monitoring Camera from wholesalers
    • Buy cheap Water Resistant Cctv Camera On Mobile , Side Mount Vehicle Monitoring Camera from wholesalers

    Water Resistant Cctv Camera On Mobile , Side Mount Vehicle Monitoring Camera

    Ask Lasest Price
    Brand Name : Visionmastercn
    Model Number : VC-539S-AHD 960P
    Price : Negotiable
    Certification : CE/FCC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 5000Pieces
    Delivery Time : 3-5 working day for sample , 7-10 working day for bulk order
    • Product Details
    • Company Profile

    Water Resistant Cctv Camera On Mobile , Side Mount Vehicle Monitoring Camera

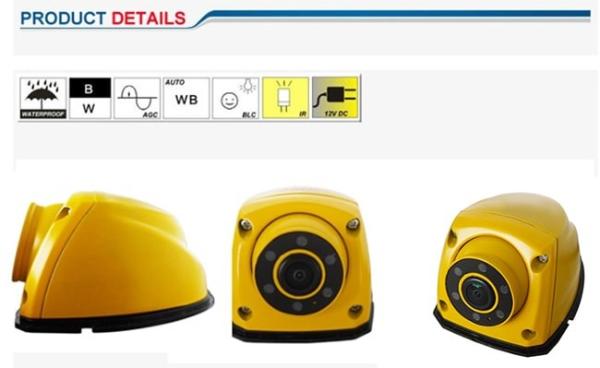

    Starlight waterproof vehicle side mount camera


    Working environment and basic parameters:
    Working environment temperature: -30℃~60℃
    Environmental relative humidity:L 95%RH
    Working voltage:DC 12V±10%
    Working current:110mA±10%
    Video interface output impedance: 70Ω-80Ω(1.0Vp-p,75Ω)
    In the case of no-load, the video output signal should be between 0.8V and 1.2V

    1. Starlight waterproof vehicle side mount camera Features:
    2. 6 glasses lens .High resolution, image is crisp and clear.
    3. High S/N ratio. Image looks clear and pleasant.
    4. Support infrared function.
    5. High reliability,IP69K.
    6. Adopt wide voltage design, more secure and more stable for powersupply.



    Sony Low illumination Camea VC-539S-AHD(Star light)


    Parameters
    ModelVC-519S-AHD960P
    Image Sensor1/3 CMOS AHD Sony Low illumination 960P, Star light
    TV SystemPAL / NTSC
    Photosensitive Area3.6mm x 2.7mm
    Scanning SystemProgressive
    Synchronization SystemInternal
    Resolution1.3MP
    Horizontal Sync Frequency15.625KHz / 15.734KHz
    Vertical Sync Frequency50Hz / 60Hz
    Minimum Illumination0.0001 Lux
    Video Output1.0vp-p, 75Ω
    Gamma Correction0.45
    AGCAuto
    S/N Ratio>48db(AGC OFF)
    White BalanceAuto
    Electronic Shutter1/50-1/100000(s) / 1/60-1/100000(s)
    IRΦ5*12pcs LEDs
    Current110mA±10% IR on
    VoltageDC 12V±10%
    AudioNO audio
    Working Temperature-40°C~70°C , RH95% MAX
    Storage Temperature:-30°C~60°C,RH95% MAX
    Lens2.8mm
    ColorBlack
    Ingress ProtectionIP68

    Our company

    Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective. Before we got this new company name(Visionmaster), we have been in the field for 8years. Our team has been steadily growing from the initial 3 founders up to more than 100 employees. Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions. Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success. Pleae do not hesitate to pick up the phone or send us an email to find out how.


    Our service
    ONE-to-One technical support.
    -MDVR warranty 12 months.
    -Free repair to our faulty manufacture product during warranty.
    -Free technical support.
    -Free marketing materials.
    -Free upgrade on software.
    -OEM cooperation on customized requirement.
    -Confidential agreement.
