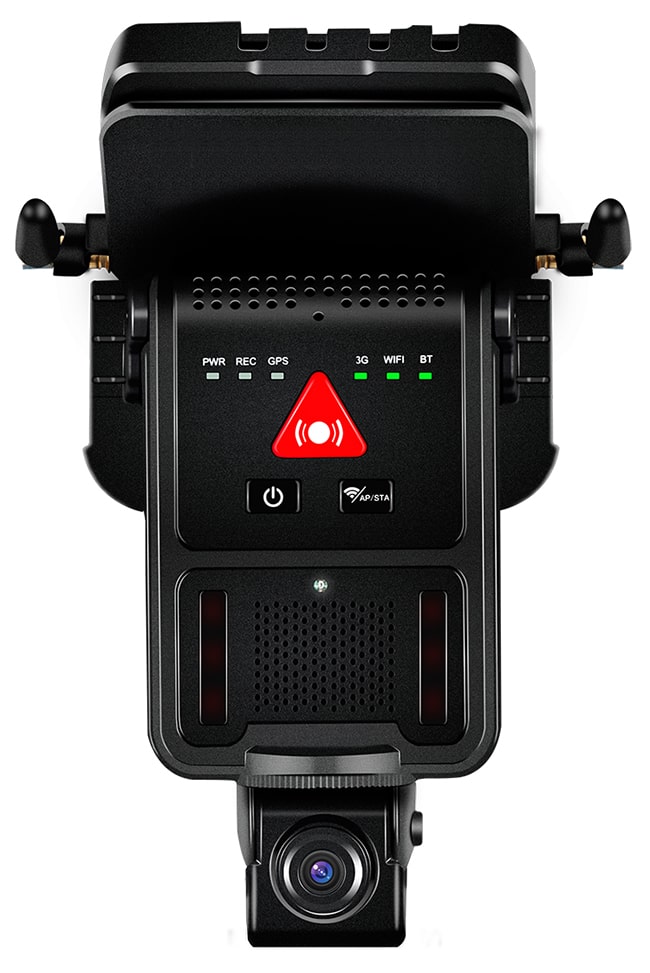

Wide Angle Lens Vehicle Dash Cam , Infrared Night Vision Rechargeable Dash Cam

Ask Lasest Price
Brand Name :	OEM/Visionmastercn
Model Number :	VK6
Price :	Negotiable
Certification :	CE
Payment Terms :	T/T, Paypal, Western Union, MoneyGram, L/C, D/A, D/P,
Supply Ability :	5000sets/month
Delivery Time :	3-5 days for sample order; Bulk order varied from 5-60 days based on order quantity and material, prouction schedule etc.

Add to Cart

Product Details
Company Profile

Wide Angle Lens Vehicle Dash Cam , Infrared Night Vision Rechargeable Dash Cam

Item		Parameter
OS		Linux
Language		Chinese/English/Others (can be customized)
Video Compression		H.264 Compression Mode
OSD		Overlays information such as date time and vehicle ID
GUI	Graphical User Interface	Can connect to external LED screen. Setup system parameters with the remote control.
Video Record System	Video Input	4 channel,2 channels built-in , 2 channels expansion; 080P AHD HD / SD / Mixed Video Input
	Video Output	1 composite video output
	Preview	Support 1/2/4 channels full screen preview
	Resolution	Support 1080P/720P/D1/CIF, MAX:4channels 1080P
	Video Quality	0-7 levels, 0 is the highest level, 7 is the lowest level.
	Video Standard	PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; D1: 800Kbps ~ 3Mbps, multi levels video quality optional; 720P : 1Mbps~4Mbps, multi levels video quality optional; 1080P: multi levels video quality optional;
	Record Mode	The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio	Audio Input	4CH ,2 channels built-in , 2 channels expansion
	Audio Output	1 channel
	Compression	G.726 compression
Alarm Input		1CH level Alarm Input
Alarm Output		1CH level Signal Output
Communication Interface		1CH RS232 &1 channel RS485
Wireless transfer		Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE
Position		Support Built GPS/BD Module,can make playback analysis of vehicle routing
G-Sensor		Support G-sensor
Video Storage	Storage	Max support 2X256GB SD Card
Video Storage	Upgrade	Support USB flash disk updating,SD card upgrade , OTA remote upgrade automatically

	File Format	H.264
	File System	Special Car system File System
	USB	Support Two USB Port: 2.0 - Front panel supports USB port, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data
Video Playback	Video Search	Search video by Record Time/Record Type etc
	Playback	Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time
	Playback	Support x 2,x4,x8,x16. fast forward or fast backward play
Safety Management		User/Admin 2 Levels Different Passwords , support screen lock
TTS Voice Broadcasting		Support TTS voice broadcasting
Voltage & Power Consumpti on	Power Management	Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support the timer switch machine, delay shutdown function.
	Voltage Input	DC:+8V ~ +36V
	Voltage Output	12V @1.2A 4 channels,with IR 12V @0.9A 2 channels,with IR
	Power-off Protection	UPS Technology,All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged.
	Power Consumption	Normal Working ＜10W, Standby state <0.5W
Working Environme nt	Temperature	-20℃ to +70℃
	Humidity	20% to 80%
	Heater device	Build-In Hard disk Heater(Temperature Sensor)
others	Size	125mm130mm150mm
others	Net Weight	0.5Kg

***** Above parameters any changes,please refer to actual product *****
