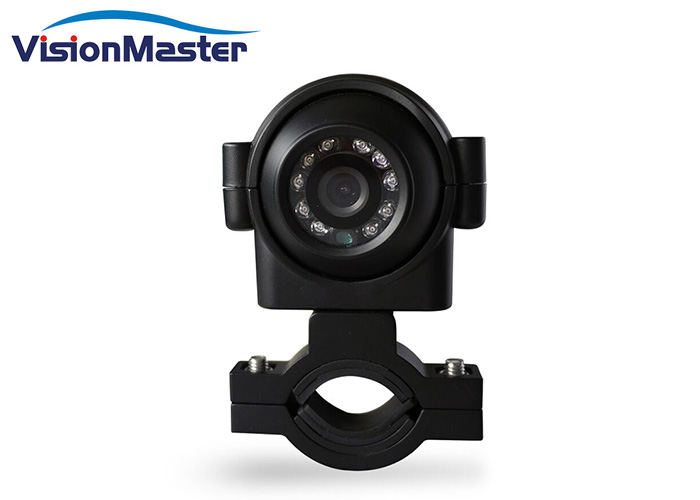

IP 68 waterproof car reversing AHD mdvr camera
1. High resolution, clear and delicate images.
2. Support automatic color transfer black function.
3. High signal to noise ratio, clean and pleasing image
4. Support automatic electronic shutter function to adapt to
different monitoring environments
5. IP67 waterproof rating
6. Uses: General-purpose camera such as general container truck and
school bus.
| Technical Parameters |
| model | VC-522B-AHD |
| Image Sensor | 1/4" COMS | 1/3"COMS | 1/3"COMS |
| Horizontal resolution | 1.0/1.3/2.0 Megapixel |
| Video format | PAL/NTSC |
| Effective Pixels | 1280(H)*720(V) | 1280(H )*960(V) | 1920(H )*1080(V) |
| Minimum illumination | Color 0.01Lux; infrared on 0 Lux |
| Signal to noise ratio | ≥69dB (AGC OFF) |
| Day and night conversion mode | ICR infrared filter automatically switches |
| Automatic gain control | AUTO |
| BLC | AUTO |
| White balance | AUTO |
| Noise reduction | 2D/3D |
| Wide dynamic | Digital wide dynamic |
| Lens parameter | 2.8/3.6mm million lens, M12*P0.5 interface |
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) |
| Video output | AHD VIDEO (720P/960P/1080P) |
| Number of infrared lamps | 10 lights |
| Infrared distance | 8 meters |
| waterproof level | IP67 |
| Operating temperature | -20°C~+70°C |
| power supply | DC12V±10% |
| Power consumption | ≤3W |
| size | 72*50*58 |
FAQ
1. Are you a manufacturer or trader?
We are a manufacturer .Development,production,sales integration
,leading video surveillance solution provider with globla
perspective.Surveillance solution,home security solution .welcome
customized order, offer OEM/ODM service.
2. What kind of certificates do you have?
UL, CUL, TUV, CE, ROHS, REACH
3. What’s the payment?
We accept TT, L/C, Paypal , Western Union or others method.
4. What is lead time?
0-15 working days, On-Time delivery.
5. Is small samples order available?
Yes, we do not only supply MOQ order, but also small samples order
for trial test or small projects.
