3.6mm In Car CCTV Camera System , IR Lens Audio Mini Security Camera System

Ask Lasest Price
Brand Name :	Visionmastercn
Model Number :	VC-521-AHD1080P
Price :	Negotiable
Certification :	CE/FCC
Payment Terms :	T/T, Western Union,paypal
Supply Ability :	5000 piece/pieces
Delivery Time :	3-5 working day for sample , 7-10 working day for bulk order

Add to Cart

Product Details
Company Profile

3.6mm In Car CCTV Camera System , IR Lens Audio Mini Security Camera System

China online shopping AHD 3.6mm IR lens Audio Mini camera

Product Description

Model NO	521AHD960P	TV System	PAL/NTSC
Image Sensor	1/3 COMS Sensor	sync system	Intenal
Mini lllumination	0 LUX (infrared LED Tum On	Resolution	1280*960
Gain Control	AUTO	S/N Rato	>48db (AGG OFF)
Electronic Shutter	1/50-1/12000 sec.	White Mode	AUTO
Auto Iris	A.E.S	Balance Range	3200-1000k
Video out	AHD at 75 ohm	Gamma Comection	0.45
Lens	3.6mm	Infrared wavelenght	850nm
IR range	15	Operation Temp	-10℃-50℃
Standard	IP55	Application	Bank,Store,School,Office,Home etc
Power Supply	DC12V ±1V/1500mA

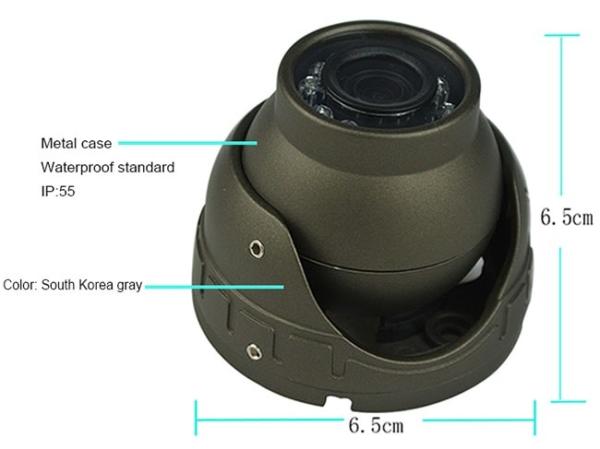

VC-521 Product Description (Metal Box Model)
Model	VC-521S	VC-521Y	VC-521E	VC-521V
Image Sensor	1/4"CMOS	1/3"CCD	1/3"SONY CCD	1/4"CMOS
Resolution	976(H)×582(V)	976(H)×582(V)	976(H)×596(V)	1020(H)×596(V)
TV System	PAL/NTSC
Horizontal Resolution	600TVLines	600TVLines	700TVLines	800TVLines
LUX	Color to Black	IR-CUT	Color to Black	IR-CUT
Infrared Lamp	(Φ5*12 pcs),infrared LED In Grade A
Mini Illumination	0Lux(Infrared LED Turn On)
Lens	3.6mm
Video Inout	1.0Vp-p/75Ω
IR	15M(Φ5*12 pcs)
Gain Control	AUTO
BLC	AUTO
White Balance	AUTO
Color Conditioning	AUTO
S/N Ratio	＞48db(AGC OFF)
Gamma Correction	＞0.45
Temperature	-10℃ - 50℃
Sync System	Internal
Consumption	<2.2W(daytime) <12W(night)
WaterProof Standard	IP55
Power Supply	DC12V/1500mA
Features	Infrared isolation double loop optical glass;Constant current constant voltage technology and unique design,with the waterproof,heat dissipation functions.
Application	Bank,Store,School,Office,Home etc

Company Information

We are the leading anf professional video surveillance solution provider with global perspective;
Always intense focus on doing products for the consumer;
EXW price,quality assurance.

We got this new company name(Visionmaster), we have been in the field for 8years. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success.
