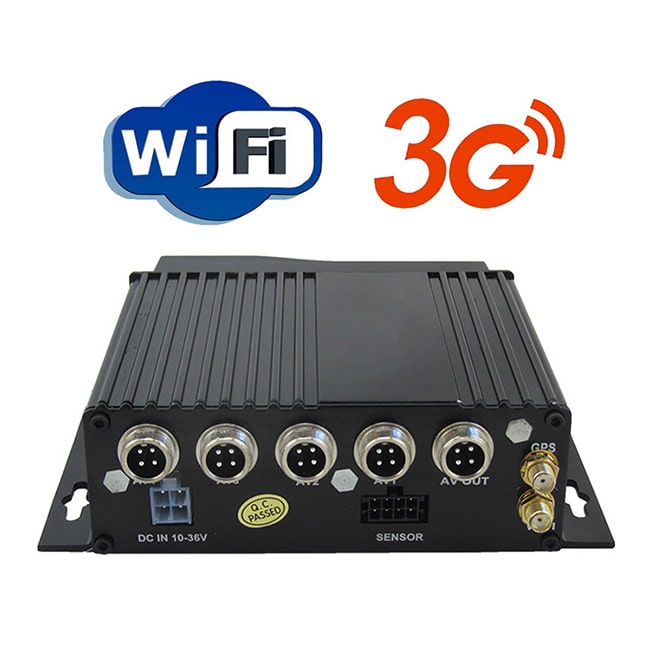

    Economic 4 Channel Vehicle Dvr , 720P Wifi CCTV Mobile Dvr With GPS Tracking

    Ask Lasest Price
    Brand Name : Visionmaster
    Model Number : VM-1504-HD
    Price : Negotiable
    Certification : CE, FCC
    Payment Terms : T/T, Western Union,PayPal
    Supply Ability : 2000 sets / month
    Delivery Time : 3-5 work days for samples,15-30 work days for large orders
    • Product Details
    • Company Profile

    Economic 4 Channel Vehicle Dvr , 720P Wifi CCTV Mobile Dvr With GPS Tracking

    Economic 4 Channel Vehicle Dvr , 720P Wifi CCTV Mobile Dvr With GPS Tracking

    Advantages

    VISIONMASTER PRODUCTS' Advantages :

    1. Power failure protection.

    2. Wide voltage (6-48V, Seldom other companies can achieve this function, other companies only can achieve 8-36V).
    3. OTA function support. (Upgrating DVR software automatically, better after-sales service for you.
    4. A SMS can get DVR situation feedback from DVR

    5. Industrial level design. (More professional and better quality.)
    6. Modular design. (To prevent a module error while affecting the entire product.)
    7. Encrypt video format. (To prevent data loss)
    8. Current and voltage over protection.
    9. Wide working temperature. (-25°C- +75°C).
    10. Data redundancy technology. (To prevent data loss)
    11. Excellent vibration protection.

    Highlights for VM-1504-HD Series:

    1. Cost effective: With low price to enjoy high definition experience;

    2. Compatibility: Compatible with both common analogue cameras and analogue high definition cameras;

    3. Compact Size: 112(W) x36(H) x138(D) mm, Weight: 360g

    4. Dual SD cards supported: Maximum supports two SD cards 128GB each.

    ItemParameter
    OSLinux
    LanguageChinese/English/Customized
    Video CompressionH.264
    OSDOverlays information such as date time and vehicle ID
    GUIGraphical User InterfaceSetup system parameters with the remote control.
    Video Record SystemVideo Input4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω
    Video Output1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen
    PreviewSupport 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview
    Resolution720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
    Video Quality1-4 levels, 1 is the highest level.
    Video Standard

    PAL: 100f/s , CCIR625 line,50field;

    NTSC: 120f/s, CCIR525 line,60field;

    CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

    HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

    D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

    720P: 4Mbps-6Mbps, multi level video quality optional

    Record ModeThe default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
    AudioAudio Input4CH ,Aviation Plug
    Audio Output1CH,Aviation Plug
    CompressionG.726 compression, 8KB/s speed


    Appendix 1: Common Questions and Answers (QA) for MDVR


    Q: What shall we do when a problem that could not be solve occurs to the product?

    A: Record product model and software version number and submit detailed problem description to our technical support engineer for analysis. Detailed description will be very helpful to our analysis.


    Q: What shall we do when the mobile device has no video output?

    A: 1. Check the power status of the device. If only one blue indicator is lit up, it indicates that the device is still in standby mode and not powered on; at the same time, check if red or yellow cable of the main power is supplied normally; If not, the device cannot be started.

    2. Check if the display is powered and if the display video is switched to AV status.

    3. Check the connection status of the video output cable and display.

    4. Check the lock status the mainframe lock; the device can be started only when the lock is locked.



    Detailed Images

    Application

    Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.




    Packaging & Shipping

    VM-1504GWT-HD Standard Packing List:


    Neutral Package:

    We support various mode of transportation for shipment :

    By sea:15~40 days arrive

    By air :2~5 days arrive

    By express:-~7 days arrive

    By air -mail :15~70 days arrive
