1080P Mobile GPS Mobile DVR For Vehicles Monitoring RS485 / RS232 Extension

Ask Lasest Price
Brand Name :	VisionMaster
Model Number :	VM-3004-Hybrid
Price :	Negotiable
Certification :	CE,FCC
Payment Terms :	T/T, Western Union,PayPal
Supply Ability :	2000 sets / month
Delivery Time :	3-5 work days for samples,15-30 work days for large orders

Add to Cart

Product Details
Company Profile

1080P Mobile GPS Mobile DVR For Vehicles Monitoring RS485 / RS232 Extension

Product Description

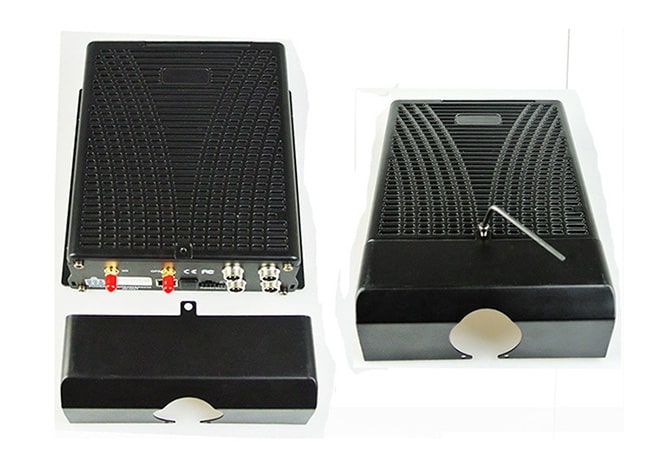

VM-3004-HYBRID is a hybrid HD MDVR with combined 4 ways of HD and 4 ways of analog audio & video recording and replaying specially designed for vehicles.

Main features:

1,H.264 image compression encoding supported, PAL: 00fps@720P, 200fps@960H

2,VM-3004-HYBRID support multi-mode HD video access(see technical specifications for details)

3,Air video interface is used to provide high reliability and strong anti-seismic property

4,Built-in 3G/4G network, GPS, WiFi (optional)

5,Built-in 2.5" HDD, max. 2TB HDD supported, damping technique

6,1 HDMI, 2 CVBS video outputs, maximum 1080P supported

7,Good scalability, 1 RS485 interface, 2 RS232 interfaces

8,8V-36V wide voltage DC supply, 12V POE power supply supported

9,HDD heating technique supported, operating temperature range -40℃- + 80℃

Common Questions and Answers (QA) for MDVR

Q: 3G/4G signal is intermittent and video is not smooth

A: So far, WCDMA and EVDO has good coverage (4G is desired to be improved). In case where signal is not covered in some mountainous areas or signal is weak due to local network restrictions in some suburban areas, the video may not be smooth or even cannot be viewed. In this case, it is largely affected by the local network; in addition, check if the frame rate for the sub stream is set too high. This may occur when the network condition is poor while the frame rate is high.

Q: Connection is impossible even when WiFi signal is up to -60db

A: If your WiFi is correctly set, connection is generally not a problem when signal intensity is up to -60db. If the device cannot be found within LAN, check if SSID and password are correctly set. Of course, the IP address shall be properly set; in addition, check the encryption type and authentication mode are set to requirements.

Item	Parameter	VM-3004-HYBRID Performance Indicator
System	Language	Chinese/English
	Operating interface	Graphical user interface (OSD menu)
	Password & security	User password and Admin password management
Video	Video input	4-way composite video input + 4-way network camera
		Or four 720P/1080P network camera supported
		Or two 720p AHD + two 960H analog mixing supported
		Or four 720P IPC + four 720P AHD/960H/D1 HD mixing supported
	Video output	3-way video output (1 HDMI, max. 1080P supported, 2 way CVBS, of which one is φ3.5 Phone Jack and the other one is 24PIN connector)
	Video display	1~8 screens supported
	Video standard	PAL format, NTSC format
	Image compression	H.264 Main profile, PAL: 100 frames 720P/s, NTSC: 120 frames 720P/s
Audio	Audio input:4 audio inputs/Audio output:2 audio outputs
Storage	One SD card is provided on the communication board. When the HDD is exceptional, you can back up videos into the SD card (3G/4G module is optional)
Alarm	Alarm input:Eight alarm inputs / Alarm output:One alarm output,
Communication interface	RS485 interface	One RS485 interface supported
	RS232 interface	Two RS232 interfaces supported
Wireless	3G	Optional built-in 3G communication module (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA)
	4G	Optional built-in 4G communication module (FDD-LTE/TDD-LTE)
	WiFi	Built-in WiFi module (optional)
GPS	Writable code stream such as built-in GPS module, geographical coordinate, rate supported; in addition, wireless uploading is possible
Sensor	Built-in acceleration sensor G-Sensor
